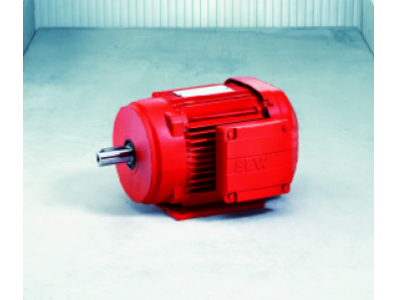

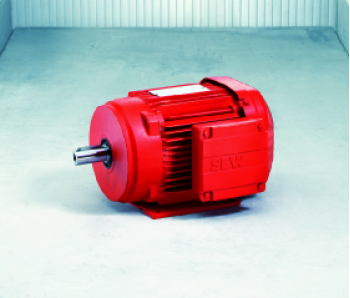

SEW DRS DRE DRP series motor
Product Name: DRS/DRE/DRP series AC motor
Product parameters
Advantage
Selection and ordering is very simple
The motor 1 series can provide energy efficiency rating various
Power range
The standard motor: 0.09 to 200 kW
High efficiency motor: 0.75 to 200 kW
Ultra high performance motor: 0.75 to 160 kW
Compact design, saving space and cost
Future oriented, committed to environmental (standard)
According to the grade of efficiency, energy efficiency motor is divided into: standard, high efficiency, super efficiency
The same motor can choose to brake 3 specifications, reduce costs
The built-in encoder integrated in the motor fan.
The motor module system
DR series AC motor module system was developed on the basis of the original motor series on SEW-EURODRIVE.
In 2002, SEW-EURODRIVE became the world's first successful application of copper casting technology for large quantities of industrial products.
DR series electric motor module comprises 3 energy efficiency rating (IE1, IE2 and IE3), as well as the perfect brake concept (the same motor can choose up to 3 kinds of different specifications of the brake), and cost optimization of built-in encoder (fan and motor integrated). DR series motor meets all the criteria of global, and has to meet the latest standards of IEC motor.
DR series motor has the advantages: the one and only a single series can be combined to drive one of a million.
|
Efficiency class
Modular brake
Design of BE brake is based on the highly successful BM (G) brake, but further development in many aspects. Brake specification always have all kinds of connections with associated with motor specifications. The reduction of braking torque is usually only changing the brake spring type or quantity. DR motor BE modular brake is no longer confined to the new. BE brake with a motor can combine 2 or 3 specifications. DR motor can be the perfect combination with BE brakes, brake torque and brake power to meet the requirements of. In addition, the brake is installed on 90 and above specifications on the motor with special structure. Brake itself is a whole, connected with the rear end cover of the motor end cover by friction. So there is no need to open the motor, brake can simply be removed, or replaced by a larger or smaller brake.
Brake combination excerpts
The built-in encoder The built-in encoder is the latest design of DR series motor, avoiding the increase of the length of the installation after the motor encoder。
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
