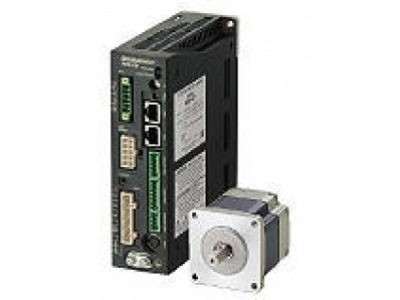

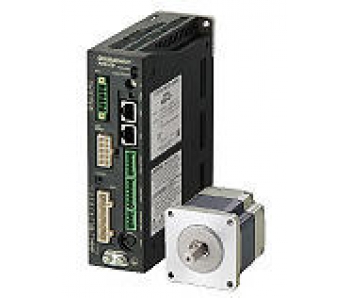

RK series stepper motor characteristics
The 1 pursuit of simple operation step motor combination, covers two hundred kinds of products, is the AC input 5 phase stepper ideal.
2 smooth driving, high response, the subdivided driving mode, can be 5. 0.72 ° 250 stage segmentation, using a digital switch can be set easily on the drive.
3 TH, PL little backlash reducer integral and PN, harmonic without backlash reducer the body, to meet the requirements of different.
Free AC gain setting servo motor combination products
NX series
A simple operation can realize the combinations of AC servo motor, high precision control.
No gain adjustment, can run smoothly and belt driven by large inertia load.
Features產(chǎn)品種類
|
model |
Rated output [W] |
Mounting dimensions [mm] |
The gear ratio |
Rated torque [N?m] |
The allowable torque [N?m] |
Backlash [min] |
|
Standard type |
50 |
42 |
- |
0.159 |
- |
- |
|
100 |
0.318 |
|||||
|
200 |
60 |
0.637 |
||||
|
400 |
1.27 |
|||||
|
750 |
85 |
2.39ps |
||||
|
ps Deceleration machine |
50 |
60 |
1:5 |
- |
0.716 ～ 3.22 |
15 |
|
100 |
1.43 ～ 6.44 |
|||||
|
200 |
90 |
2.87 ～ 12.9 |
||||
|
400 |
5.72 ～ 25.7 |
|||||
|
PJ |
100 |
80 |
1.27 ～ 6.36 |
3 |
||
|
200 |
2.54 ～ 12.7 |
|||||
|
400 |
104 |
5.08 ～ 25.4 |
||||
|
750 |
9.56 ～ 47.8 |
