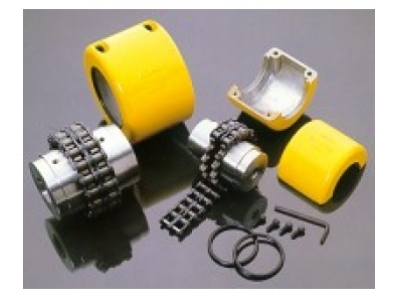

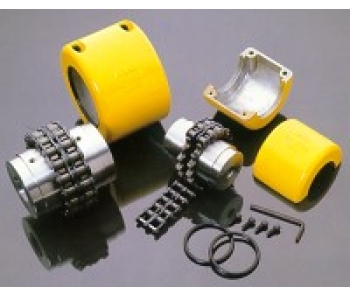

KANA Chain coupling

High quality carbon steel materials, making tight, high precision and high strength, abrasion, elongated ensure tension

孔徑 14 m/m ~ 140 m/m

Pore size of 14 m/m ~ 140 m/m

最高使用轉速2500rpm

High speed 2500rpm

傳動效率高 , 不變形設計

High transmission efficiency, no deformation design

安全保護外殼裝置

Safety protection shell device

傳達轉矩：10.2~7320kgf/m

Transmission torque: 10.2~7320kgf/m

本體外徑：25~960mm

Body diameter: 25~960mm

軸穴加工孔徑：9.5~700mm

The shaft hole processing aperture: 9.5~700mm
