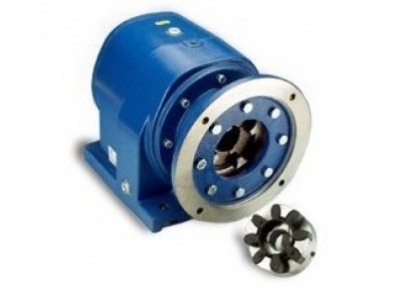

STM A type coaxial reducer
This series of reducer STM reducer group company adopts the integral
Casting box, so that the speed reducer reducer can pass more rugged, such
Pass the higher load without causing deformation speed reducer case, and deceleration
Technical performance is not machine to reduce.
Have a unique design in the reducer, the lubricating oil can reach all
The moving parts, so that all the parts can be lubricated, decelerating
Machine noise reduction, increase the seal life.
The output shaft of the configuration of modular design, can provide users with non
Constant elastic connection mode.
Speed down ratio: Min 1/2.4 - Max 1/277.3
Torque (Nm): Min 12 - Max 3300
Power (Kw): Min 0,03 - Max 88,97

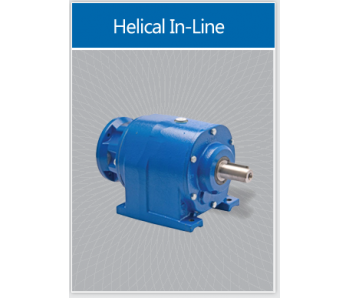

STM A type coaxial speed reducer
This series of reducer STM reducer group company adopts the integral
Casting box, so that the speed reducer reducer can pass more solid, so
Pass a higher load without causing deformation speed reducer case, and deceleration
Technical performance is not machine to reduce.
Has a unique design in the reducer, so the lubricating oil can reach all
The moving parts, so that all the parts can be lubricated, decelerating
Machine noise reduction, increase the seal life.
The output shaft of the configuration of modular design, can provide users with non
Connection mode of constant elasticity.
Speed down ratio: Min 1/2.4 - Max 1/277.3
Torque (Nm): Min 12 - Max 3300
Power (Kw): Min 0,03 - Max 88,97
|
Size |
Torque (Nm) |
Power (Kw) |
Ratio |
|
25 |
Min 12 |
Min 0,03 |
Min 1/3.4 |
|
35 |
Min 35 |
Min 0,04 |
Min 1/3.4 |
|
40 |
Min 76 |
Min 0,08 |
Min 1/8.5 |
|
41 |
Min 80 |
Min 0,07 |
Min 1/7.5 |
|
45 |
Min 115 |
Min 0,13 |
Min 1/5.8 |
|
50 |
Min 147 |
Min 0,21 |
Min 1/6.3 |
|
60 |
Min 338 |
Min 0,38 |
Min 1/7.9 |
|
80 |
Min 707 |
Min 0,83 |
Min 1/7.8 |
|
100 |
Min 1085 |
Min 1,8 |
Min 1/2.4 |
|
120 |
Min 1700 |
Min 1,74 |
Min 1/2.8 |
