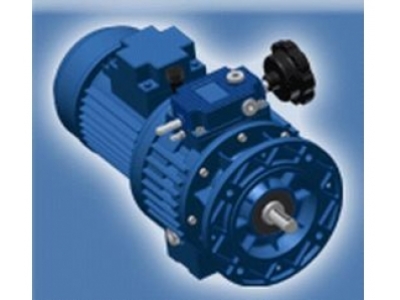

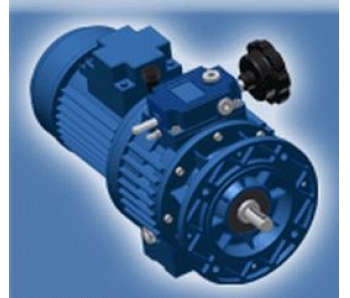

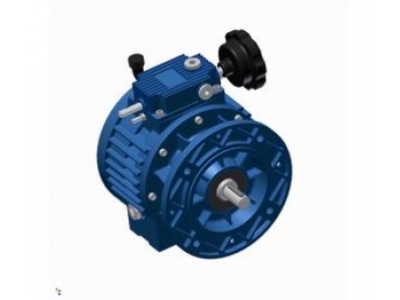

SITI MK series stepless speed regulator
Design and manufacturing
Body shape by computer aided design, gear torque, the service life of the bearing, the strength of body structure are detected by technical computing and the most modern design.
Operation principle
The mechanical governor is the same in the input speed of principle, can be arbitrary regulation speed of the output device.
In essence, the mechanical governor is a planet gear device composed of non.
Transmission of this device is realized by frictional force, therefore the accuracy of the device and the quality of the requirements are very high.
This device is divided into a single stage regulator and a spiral bevel gear box two stage combined governor.
Through the spiral bevel gear box, the device not only can allow than the input speed performance in lower and higher torque.
Transmission
The output speed is adjusted by manual rotation speed control handle, and only when the transmission operation can speed adjustment.
Property relationship
Because the governor is variable speed device, and based on constant power, output torque will change with the output speed, theoretical performance for the minimum speed corresponding to the maximum torque, maximum speed corresponding to the minimum torque. However, the maximum torque in the sample is provided for not more than in any case, namely the planetary friction wheel begins to slip when the torque.
Technology characteristics
Planetary and groove is made by 100Cr6 synthesis of steel, the material can ensure the parts to achieve the best performance in friction.
The output shaft is made from 42Cr Mo4 hardened steel or has the same characteristics of materials.
- box is according to UNI5007 standard, is made of grey cast iron.
Lubricating oil
The addition of the device is a special liquid lubricant with cooling and anti wear.
Performance
The input power 0,06 ~ 11kW
The output torque of 1.2Nm - 3000Nm
 |
|
