Reminder: SPAGGIARI TRASMISSION SW

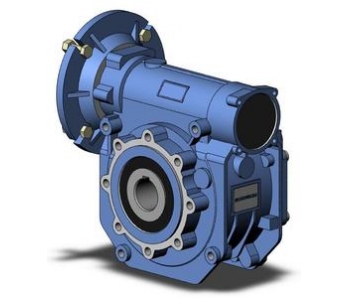

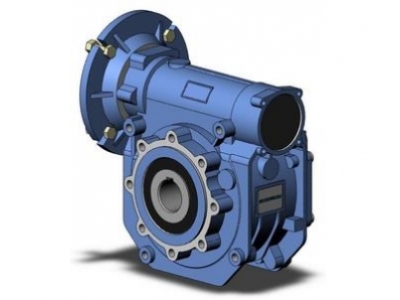

We often know production of a wide range of mechanical transmission and spiral iron inline gear motor components producer Spaggiari Trasmission expanded their product range, after Motovario took over, adding aluminum worm gear set, SW. is the new product, namely friction duo Li NMRV gear reducer of complementary goods, there is a axial height of 30 to 110 mm (Baugr ö ß en 030 bis 105) and a compact thin circular shell design, reduce as far as possible space. In order to better reliability and compatibility / availability, gears, bearings, motor flange and accessories are referred to the NMRV series.
The characteristics of the product
Model: 030-040-050-063-075-090-105
Available version: SW- is applicable to motor coupling, ISW- for the input shaft, SWL- for the torque limiter
Power up to 11 kw
The aluminum element fully use synthetic oil, it allows the general location, do not need to modify the lubricant quantity. And no plug element reduces the risk of lubricating oil oxidation and pollution.
Reduction ratio between 5 to 100
Maximum torque is 630Nm, which can bear radial load 12000N Max
The die casting aluminum alloy
Worm: bronze material Cu Sn12 Ni2 (UNI7013-10)
Involute worm surface cut (UNI4760)
Excellent mechanical strength and the lightest weight
Load capacity is calculated by BS721-83 and passed the Niemann certification
According to the DIN1843 standard, spraying with RAL5010, blue epoxy polyester powder.
Worm reducer is applied to the following combinations: SW+SW e SW+ISW
Options: torque arm, output flange kit, output shaft, end cover, the high speed shaft of double output
Reminder: SPAGGIARI TRASMISSION SW

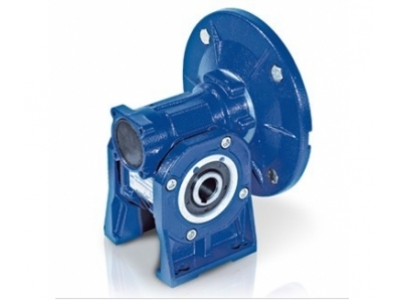

We usually know the production of a wide range of mechanical type variatorand spiral iron inline gear motor components producer Spaggiari Trasmission expanded their product range, after Motovario took over, adding aluminum alloy casting turbine worm gear group, also is the SW. of the new products,massage duo Li NMRV gear reducer complementary goods, there is a axialheight of 30 to 110 mm (Baugr, beta en 030 bis 105) and a compact thincircular shell design, to reduce as much as possible space. In order to betterreliability and compatibility / effectiveness of supply, gear, bearing, motorflange and accessories all reference to the NMRV series.
The characteristics of the product
Model: 030-040-050-063-075-090-105
Available version: SW- is applicable to motor coupling, ISW- for the input shaft,SWL- is used for torque limiter
Power up to 11 kw
The aluminum element fully use synthetic oil, it allows the general location of the installation, do not need to modify the lubricant quantity. And no plugelement reduces risk of lubricating oil oxidation and pollution.
Reduction ratio between 5 to 100
Maximum torque is 630Nm, which can withstand the maximum radial load12000N
Die casting aluminum alloy box
Worm: bronze material Cu Sn12 Ni2 (UNI7013-10)
Involute worm surface dissected (UNI4760)
Excellent mechanical strength and the lightest weight
Load capacity is calculated by BS721-83 and passed the Niemann certification
According to the DIN1843 standard, spraying with RAL5010 blue epoxy polyester powder.
Worm reducer for the following different combinations: SW+SW e SW+ISW
Options: torque arm, an output flange kit, the output shaft end cover, shaft,high speed dual output
